Gensets

GENSETS

Empowering Industries with Reliable
John Deere Gensets

If you need superior performance and reliable power generating systems backed by nationally, world-class service and support. Whether it’s the power for utility vehicles, oil rigs, cell towers, airport, data centres or mining, we have the solution. However pure product performance isn’t the strongest factor regarding operating with John Deere. It’s the confidence of getting the integration and support network of John Deere at your side each step of the way. You can completely trust us for the complete power solutions in a hassle-free manner.



John Deere Gensets

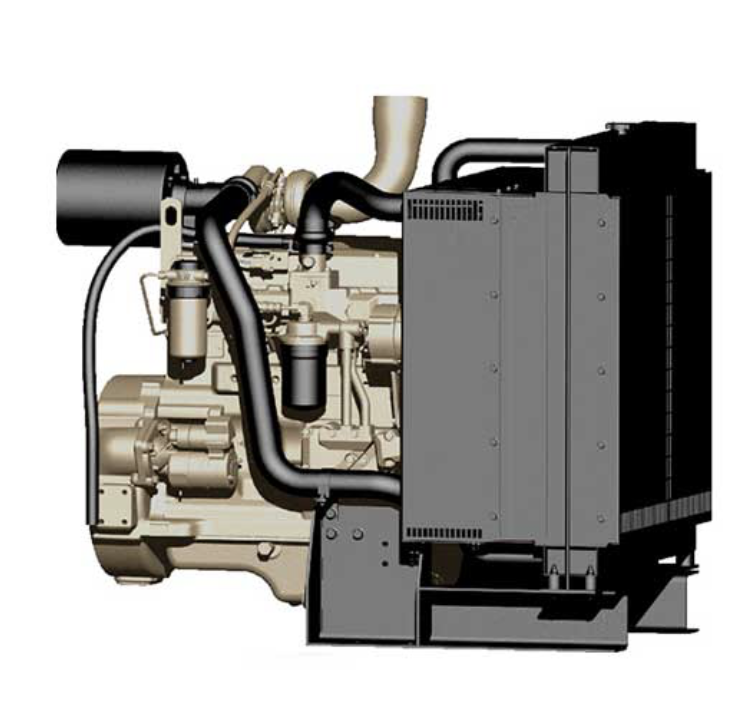

PTM 4045

Gensets

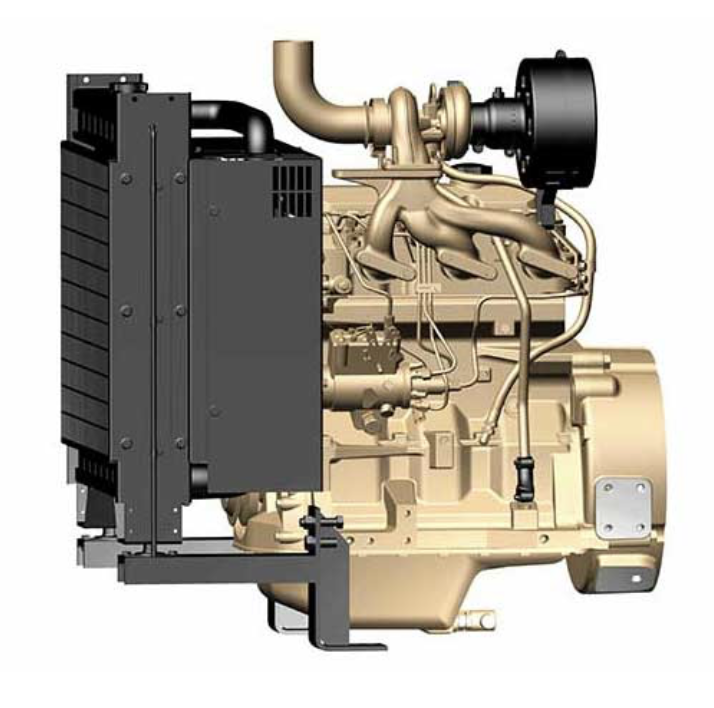

PTM 3029

Gensets

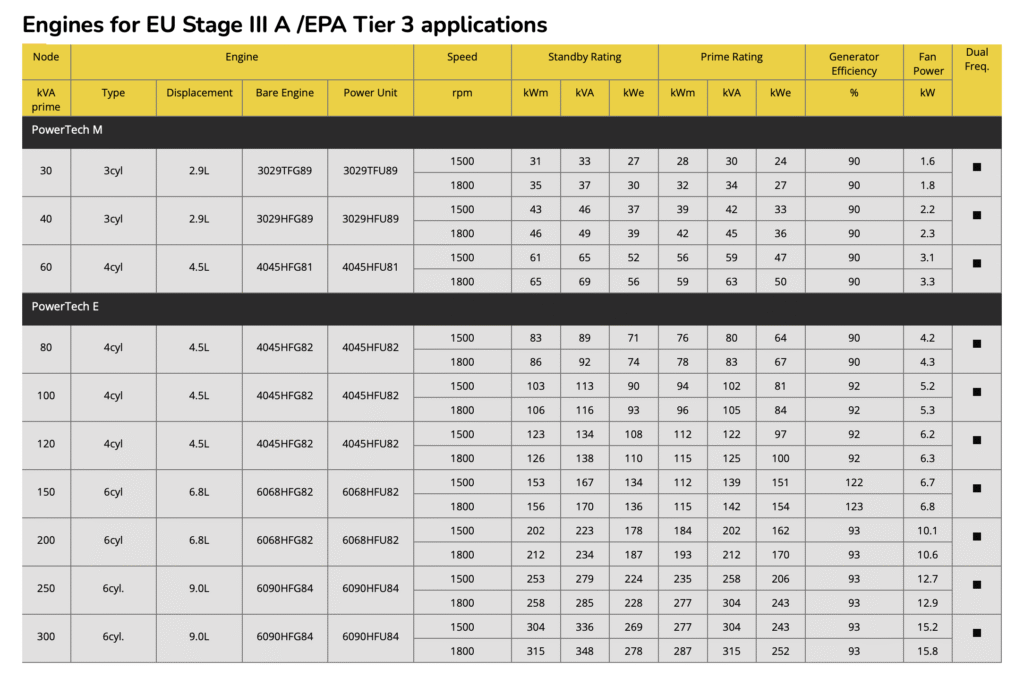

Engines for EU Stage III A / EPA Tier 3 applications
Node Engine Speed Standby Rating Prime Rating Generator
Efficiency		 Fan
Power		 Dual
Freq.
kVA prime Type Displacement Bare Engine Power Unit rpm kWm kVA kWe kWm kVA kWe % kW
PowerTech M
30 3cyl 2.9L 3029TFG89 3029TFU89 1500 31 33 27 28 30 24 90 1.6 ■
1800 35 37 30 32 34 27 90 1.8 ■
40 3cyl 2.9L 3029HFG89 3029HFU89 1500 43 46 37 39 42 33 90 2.2 ■
1800 46 49 39 42 45 36 90 2.3 ■
60 4cyl 4.5L 4045HFG81 4045HFU81 1500 61 65 52 56 59 47 90 3.1 ■
1800 65 69 56 59 63 50 90 3.3 ■
PowerTech E
80 4cyl 4.5L 4045HFG82 4045HFU82 1500 83 89 71 76 80 64 90 4.2 ■
1800 86 92 74 78 83 67 90 4.3 ■
100 4cyl 4.5L 4045HFG82 4045HFU82 1500 103 113 90 94 102 81 92 5.2 ■
1800 106 116 93 96 105 84 92 5.3 ■
120 4cyl 4.5L 4045HFG82 4045HFU82 1500 123 134 108 112 122 97 92 6.2 ■
1800 126 138 110 115 125 100 92 6.3 ■
150 6cyl 6.8L 6068HFG82 6068HFU82 1500 153 167 134 112 139 151 122 6.7 ■
1800 156 170 136 115 142 154 123 6.8 ■
200 6cyl 6.8L 6068HFG82 6068HFU82 1500 202 223 178 184 202 162 93 10.1 ■
1800 212 234 187 193 212 170 93 10.6 ■
250 6cyl. 9.0L 6090HFG84 6090HFU84 1500 253 279 224 235 258 206 93 12.7 ■
1800 258 285 228 277 304 243 93 12.9 ■
300 6cyl. 9.0L 6090HFG84 6090HFU84 1500 304 336 269 277 304 243 93 15.2 ■
1800 315 348 278 287 315 252 93 15.8 ■

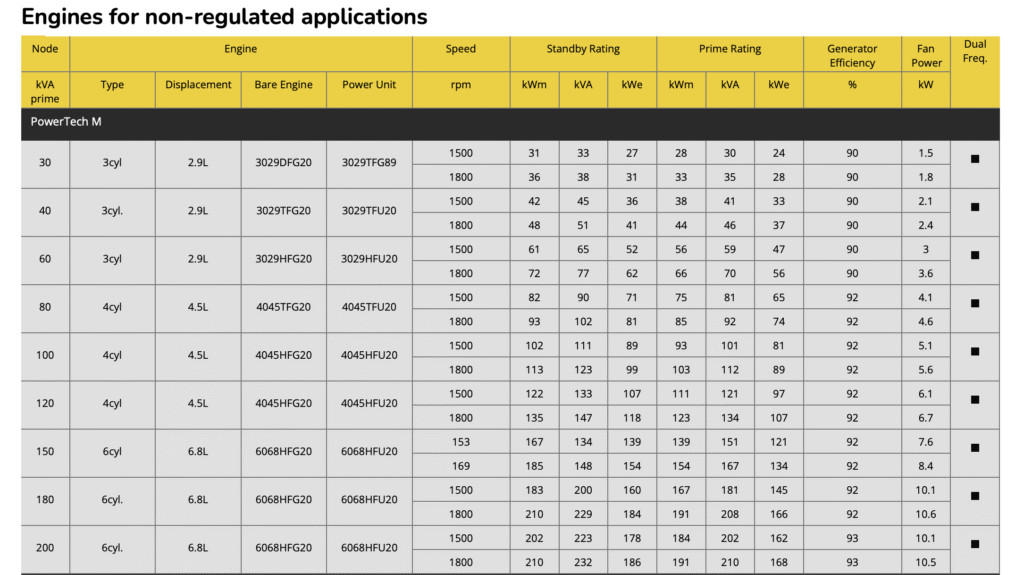

Engines for non-regulated applications
Node Engine Speed Standby Rating Prime Rating Generator
Efficiency		 Fan
Power		 Dual
Freq.
kVA prime Type Displacement Bare Engine Power Unit rpm kWm kVA kWe kWm kVA kWe % kW
PowerTech M
30 3cyl 2.9L 3029DFG20 3029TFG89 1500 31 33 27 28 30 24 90 1.5 ■
1800 36 38 31 33 35 28 90 1.8 ■
40 3cyl. 2.9L 3029TFG20 3029TFU20 1500 42 45 36 38 41 33 90 2.1 ■
1800 48 51 41 44 46 37 90 2.4 ■
60 3cyl 2.9L 3029HFG20 3029HFU20 1500 61 65 52 56 59 47 90 3 ■
1800 72 77 62 66 70 56 90 3.6 ■
80 4cyl 4.5L 4045TFG20 4045TFU20 1500 82 90 71 75 81 65 92 4.1 ■
1800 93 102 81 85 92 74 92 4.6 ■
100 4cyl 4.5L 4045HFG20 4045HFU20 1500 102 111 89 93 101 81 92 5.1 ■
1800 113 123 99 103 112 89 92 5.6 ■
120 4cyl 4.5L 4045HFG20 4045HFU20 1500 122 133 107 111 121 97 92 6.1 ■
1800 135 147 118 123 134 107 92 6.7 ■
150 6cyl 6.8L 6068HFG20 6068HFU20 1500 153 167 134 139 151 121 92 7.6 ■
1800 169 185 148 154 167 134 92 8.4 ■
180 6cyl. 6.8L 6068HFG20 6068HFU20 1500 183 200 160 167 181 145 92 10.1 ■
1800 210 229 184 191 208 166 92 10.6 ■
200 6cyl. 6.8L 6068HFG20 6068HFU20 1500 202 223 178 184 202 162 93 10.1 ■
1800 210 232 186 191 210 168 93 10.5 ■

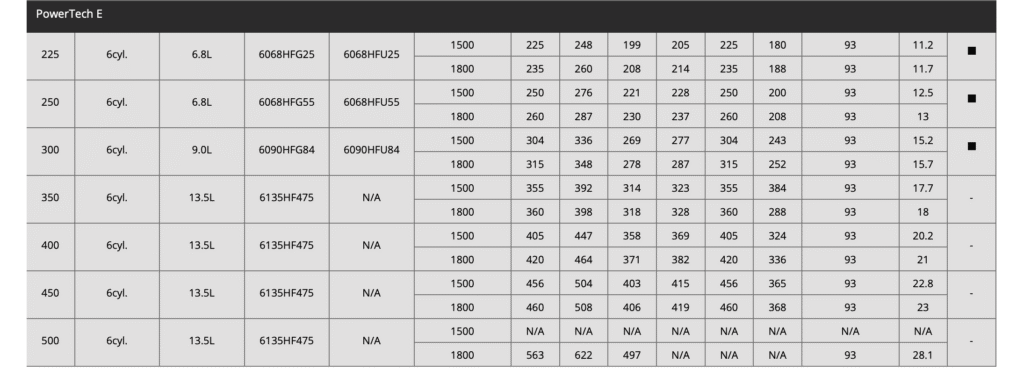

PowerTech E
225 6cyl. 6.8L 6068HFG25 6068HFU25 1500 225 248 199 205 225 180 93 11.2 ■
1800 235 260 208 214 235 188 93 11.7 ■
250 6cyl. 6.8L 6068HFG55 6068HFU55 1500 250 276 221 228 250 200 93 12.5 ■
1800 260 287 230 237 260 208 93 13 ■
300 6cyl. 9.0L 6090HFG84 6090HFU84 1500 304 336 269 277 304 243 93 15.2 ■
1800 315 348 278 287 315 252 93 15.7 ■
350 6cyl. 13.5L 6135HF475 N/A 1500 355 392 314 323 355 384 93 17.7 -
1800 360 398 318 328 360 288 93 18 -
400 6cyl. 13.5L 6135HF475 N/A 1500 405 447 358 369 405 324 93 20.2 -
1800 420 464 371 382 420 336 93 21 -
450 6cyl. 13.5L 6135HF475 N/A 1500 456 504 403 415 456 365 93 22.8 -
1800 460 508 406 419 460 368 93 23 -
500 6cyl. 13.5L 6135HF475 N/A 1500 N/A N/A N/A N/A N/A N/A N/A N/A -
1800 563 622 497 N/A N/A N/A 93 28.1 -
